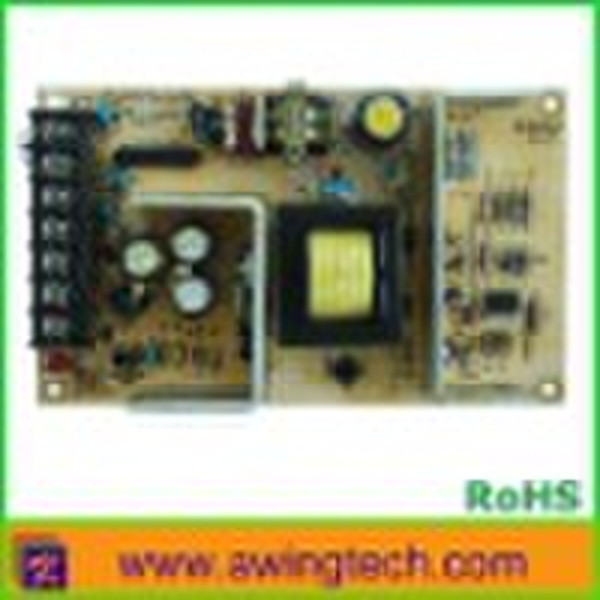

120v dc output 60W LCD TV DC DC converter
original price: 7,45 USD
Alan Lee
Contact person
Basic Information
| Place of Origin | Guangdong China (Mainland) |
|---|---|
| Brand Name | FLY |
| Model Number | FLY-PW0605DC |
| Size | 155*95*30mm |
| Weight | 0.40KG |
| Input Voltage | 90VDC-130VDC |
| Output Voltage | 12V |
| Output Frequency | 47-53KHZ |
| Output Current | 5A |
| Output Power | 51 - 100W |
| Output Type | Single |
| Type | DC/DC Converters |
Name : Apply in high speed train lcd TV 's 60W DC to DC CONVERTER Input voltage range : 90VDC-130VDC Output voltage:12V 5A Output power : 60W Function :OVP,SCP,OCP DC to DC CONVERTERDimension: 155mm X 95mm X 30mm Safety standard : GB4943 EN60950 EMC standard :GB9254 EN55022B Detail : Table 1 Input Electrical Characteristics OverviewNormal voltage range90VDC to 130VDCMax.input ac current1.0Amax. at full load conditionEfficiency(full load)80% min. at 110VDC.Table 2 Output Voltage ,Current & RegulationOutput VoltageRegulationMin. currentTpy. currentPeak current+12V11.4V-12.6V0.5A5A6A Table 3 DC Output Ripple & NoiseOutput VoltageRipple & Noise (Max.)+12Vless than 240mVp-pTable 4 DC output Over Voltage Protection.Output VoltageMax. Over VoltageComments+12V +15VtypHiccupTable5 DC Output Short Circuit ProtectionOutput VoltageComments+12V HiccupTable 6 Over Current ProtectionInput voltageCurrentOVP Method110Vac (TYP) 6.5A Hiccup
