| Place of Origin |
Guangdong China (Mainland) |
| Brand Name |
FLY |
| Model Number |
FLY-IP60990A(60V 990MA) |
| Weight |
850g |
| Output Voltage |
36-60V DC |

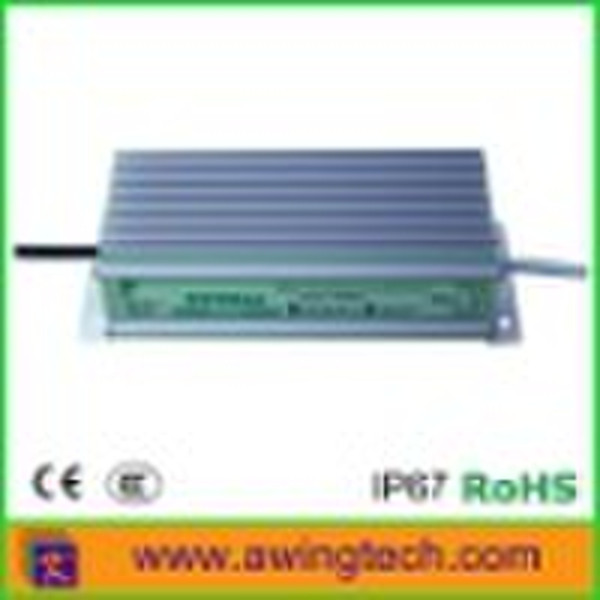

FLY-IP60990A(60V 990mA) Constantcurrent water proof LED power suppliesFeature1,Design with PWM Switch Technical: High Performance, Stable, Low energy wastage, High effect, About 50% Lower energy wastage compare to normal transformer.2,Power protection:Overload, OverVoltage, Overcurrent, Shortcircuit protect.3,Widen Input voltage range:(Volage: 170—250V).4,Various kind of Waterproof Power Supply.5,Cover with Aluminum-Co-metal material, high performance for reduce heat,temperature raise less than 25°C.6,ProtectIon Rank.IP67. 7, 100% full load test, lightning protection 4KV 8,Pass CE & ROHS, 2-year warranty MODEL FLY-IP60990A OUTPUT Rated DC voltage 36 60V DC Rated current 990mA to single output Current range 990mA±5% 6S Rated Power 60W Voltage tolerance ±30mA Ripple & Noise 400mVp-p Load regulation ±2% INPUT Operating voltage 170-250VAC 90-130VAC 50/60Hz Voltage range 90 265VAC Frequency range 47 65Hz Efficiency (Typ.) 85% Leakage current 0.5mA/240VAC PROTECTION lightning protection 4KV Over load,over voltage 96V Short circuit with short circuit protection Over TEMP. NO over-temperature protection ENVIRONME NT Working TEMP. -30°C 50°C Storage TEMP. -40°C 80°C Working Humidity IP67 Vibration 10 500Hz,2G 10min/1cycle ,X,Y,Z line60min TEMP. coefficient ±0.03%/°C(0 50°C) Safty & approval Safty standards CE EN 55015; EN 61547; EN 61347 EN61000-3-2,3 EN61000-4-2,3,4,5,6,11 OTHERS MTBF 2KHours MIL-HDBK-217F (25°C) Dimension 195*70*50MM Weight 850g Mechanical Size(mm)
