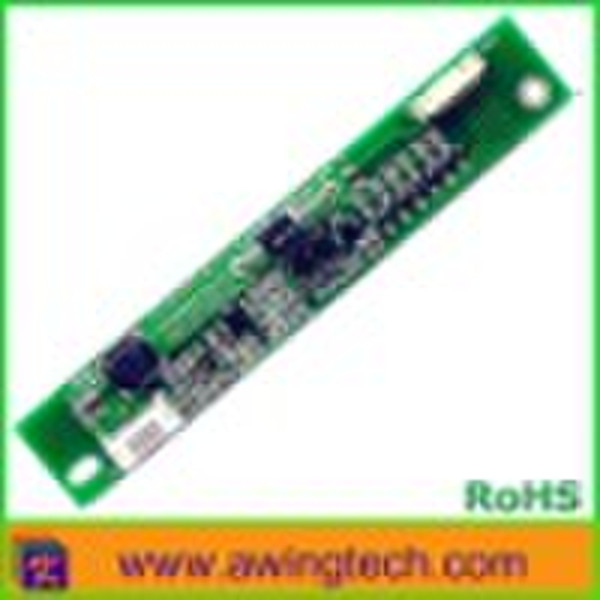

LED Backlight Driver/converter

FLY-LED15404 LED Backlight Driver Features Applicable to2/4/6 LED strings 12" to 15.4" Lcd Low profile and compact design Constant LED current output (20mA) PWM/Or DC Voltage Dimming Control Short circuit and overload protection External power On/Off control High reliability Constant current output high-power LED lighting universal AC input/full range Output over voltage protection + SCP MTBF: 100,000 hours 100% burn-in under high ambient temperature Specification Input voltage range: 7-15V DC Load regulation: ±5% Output voltage: 28-37V Output current:: 115-150mA Output power: 4.2W Dimensions: 124*21*12mm Dimming: PWM dimming control 0-100%, 0V dark; 5V bright CN1: CQ2002P0600T or equivalent CN2: PH 2.0-10mm JH2-40-XX2N or equivalent Applications: 6 series LEDs 13.3”- 15.4”LED Back Light panel 15.4”LED TFT LCD Module: CHI MEI N154C6-L02 High temperature operation Certifications: CE and RoHS Standards: EN55015:2006, EN61547, IEC61347-2-13 and IEC60968 Applications: DC to DC back-lightconverter is special designed on any type LCD display in implement (LCD monitor and others) We are Supplying various backlight inverter & converter for LCD TV/Monitor, laptop/notebook, AD display, game display, digital signage, industrial cntrole,medial Treatment, and vehicle-Mounted display.
